HP09

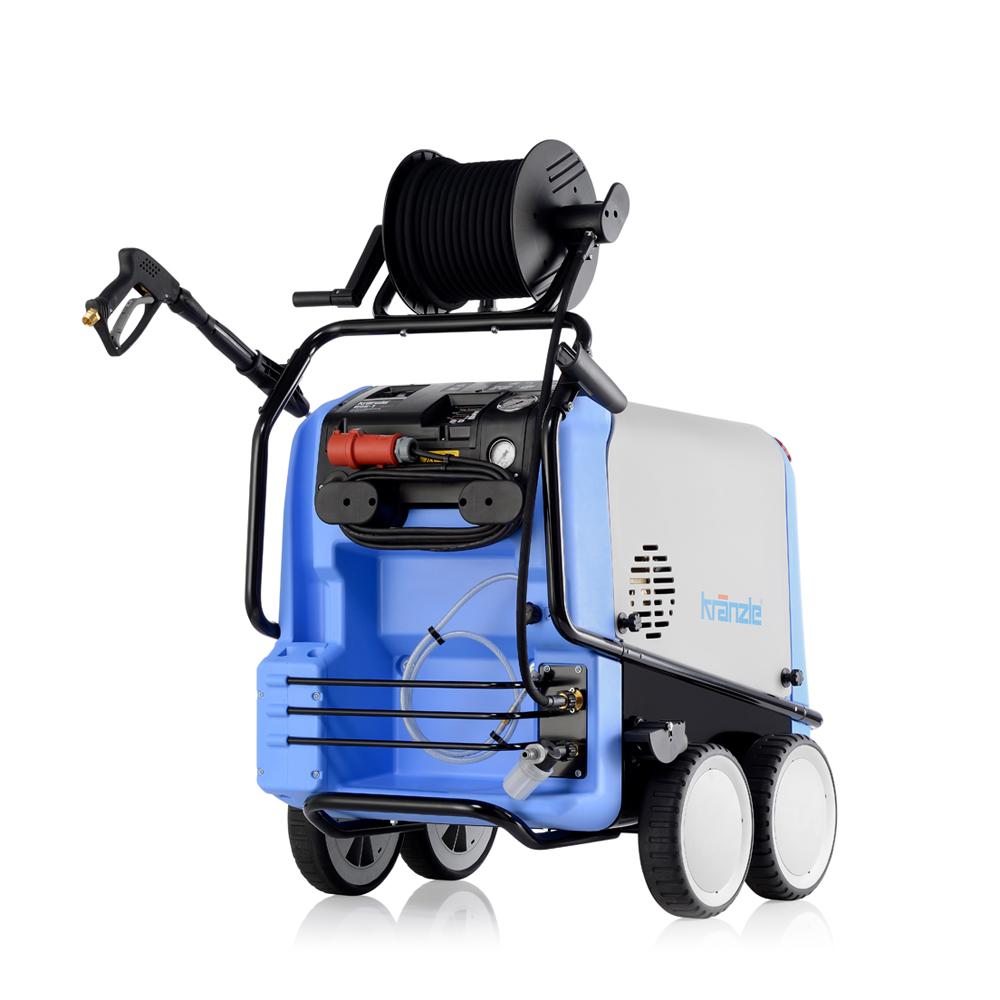

Kranzle Mobile Hot Water High Pressure Cleaner

Hot Water High Pressure Machine

Code
Category
Origin
Warranty
1
Brand
Kraenzle

  • All-terrain chassis

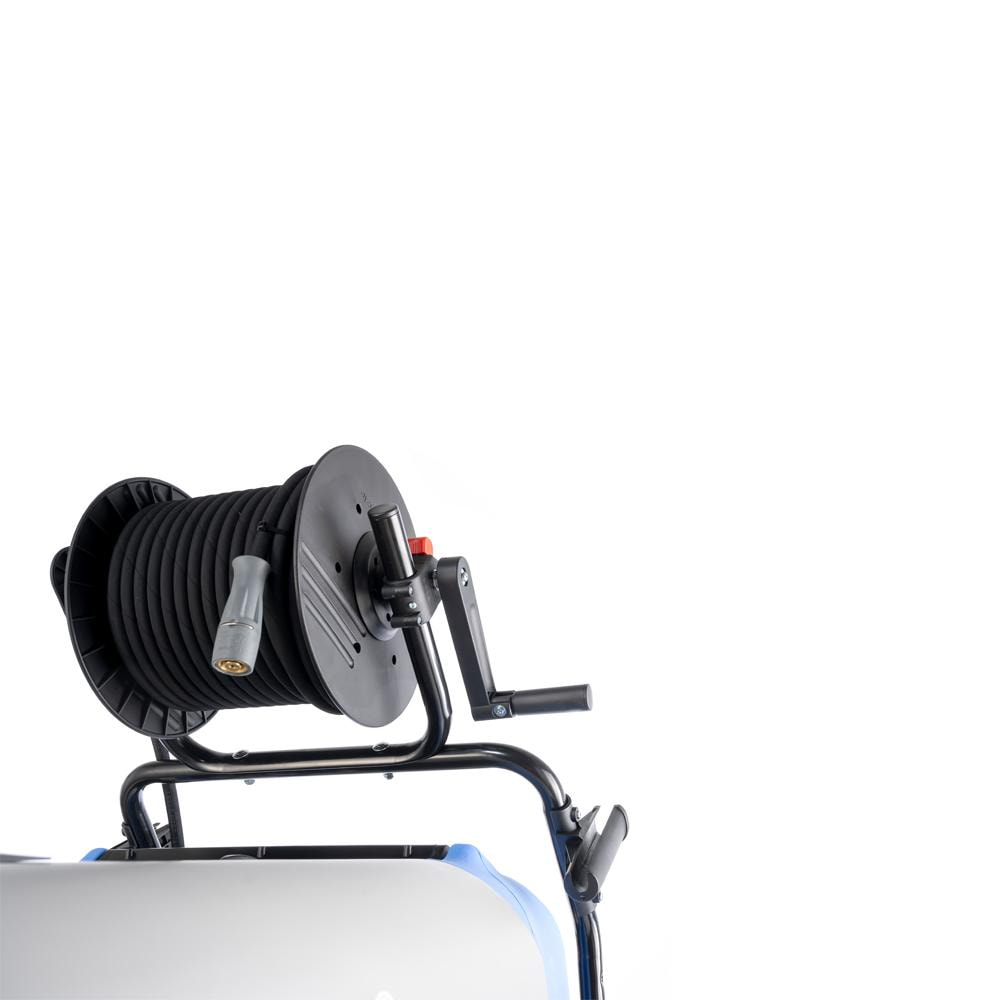

  • Optional: integrated hose reel with folding crank handle
  • 20 m high-pressure hose (with hose reel)
  • 10 m high-pressure hose (without hose reel)
  • Pressure regulation: working pressure infinitely variable
  • Total stop system with delayed motor cut-off

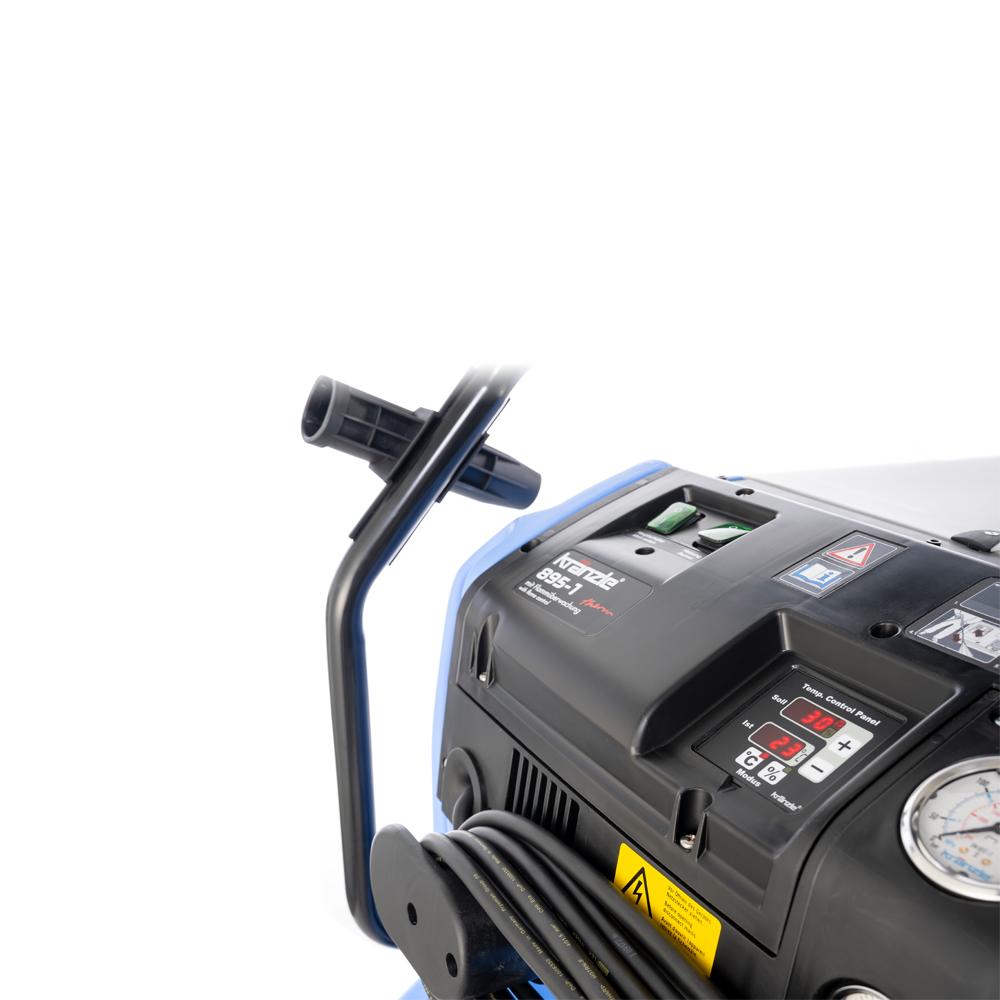

  • Clearly arranged control panel to regulate the water temperature
  • 7.5 m connection cable with a cable winder
  • Organization system
  • Impact protection
  • Safety shut-off
  • Flow monitoring
  • Combustion chamber pre-ventilation
  • Optical flame monitoring system
  • Safety thermostat
  • 4-fold safety system with overload protection
  • Burning stop in case of fuel oil shortage
  • Detergent suction
  • Removable bonnets to protect the mechanical components
  • Parking brake for a secure hold
  • Water inlet filter
  • Operating hours counter

Operating Pressure Adjustable 30-195 bar / 3-19.5 MPa
Max. Admissible Overpressure 215 bar / 21.5 MPa
Connected Load (V / ~ / Hz / A) 400V / 3~ / 50Hz / 12A
Motor Speed 1400 RPM
Water Output 14.9 Litters/minute | 895 Litters/hour
Power Intake / Power Output 6.4 / 5.5 kW
Volume Water Tank 4 Litters
Hot Water Output Adjustable 12-86 C
Steam Level 155 C
Heating Output 65 kW
Fuel Tank 35 Litters
Power Supply Cable 7.5 Meters
Dimensions (L x W x H) 105 x 80 x 130 cm
Weight 223 kg
