SM33

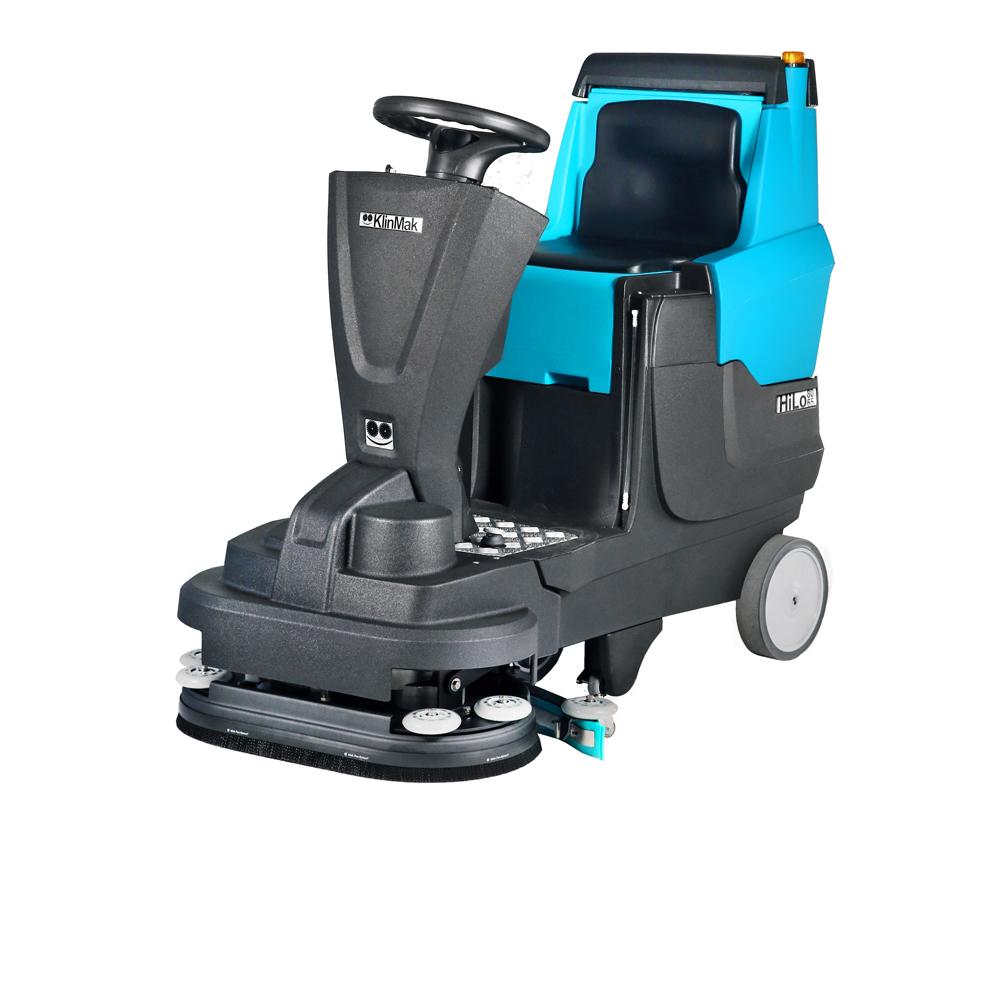

Ride on Scrubber Dryer HILO 8065

Compact Ride-on 80 Liters Scrubber Dryer

Code
Category
Origin
Warranty
2
Brand
Klinmak

With the introduction of this innovative scrubber-dryer, we have maintained the mobility and manoeuvring characteristics of a walk-behind, with the productivity and yield of a ride-on.

The combination of advantages generates a unique machine that allows it to adapt to all types of applications.

Other Features

  • Front washing head
  • Wiper in front of the wheels
  • Heavy washing head
  • Reduced maintenance
  • Motor/drive unit
  • Safety pedal brake
  • Reduction of speed on cornering
  • “Power steering”
  • Reduction of the solution on cornering
  • Selection of the operating speed

Compact Ride-on Scrubber Dryer HILO 8065
Solution Tank 80 Liters
Recovery Tank 80 Liters
Cleaning Track 650 mm
Theoretic Yield 3900 sqm/hour
Installed Power 1350W
Protection Degree IPX3
Autonomy up to 4 hours
Power Supply 24 V
Energy Consumption 0.35W sqm
Dimensions (L x W x H) mounted squeegees 1320 x 730 x 1225 mm
Weight with Batteries 210 kg
Weight without Batteries 125 kg
Reverse Corridor 1.8 m
Sound Level 69 dBA
Brushes 2 x Ø13" - 330mm
Brush Motor Rated Power 550w
Vacuum Brush Rotation Speed 225 - 187 Rpm
Load on Brush Adjustable 0 - 41 kg
Silenced Turbine Rated Power 500 W
Vacuum (0 mm orifice) 1526 mm H2O
Motor Differential Power with Break 300 W
Working / Transfer Speed 0-4 / 0-6 km/hour
Max. Slope Exceedable 7% - 16% (Work - Ramp)
Gear Motor Power 30 W
Battery compartment (2x) 375 x 375 x 315 mm
Standard Batteries (2x) Gel 12V 105/140 Ah (C5/C20)
Recommended Battery Unit Size 345 x 170 x 285 mm
Battery Weight 42.7 kg
Dimensions (Pallet included) 1349 x 749 x 1364 mm
Weight without Batteries including Pallet & Cardboard 155 kg
Weight without Accessories 240 kg (Batteries including)
Weight with Accessories & Packaging 246 kg
Low Voltage 2014/35/EC
Electromagnetic 2014/30/EC
